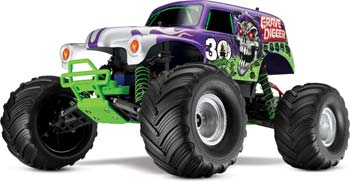

Grave Digger 2WD Truck RTR
Sold out
$229.99
SKU TRA3602A
This is the 1/10 scale electric powered, radio controlled, ready to run,
Traxxas Grave Digger Monster Truck.
FEATURES: Chassis: Composite nylon tub style
Drive: Rear wheel with telescoping universal-joint driveshafts
Motor: Traxxas Titan modified 12 turn 550 with internal cooling fan
Radio: Traxxas TQ 27MHz AM 2-channel pistol grip with high-torque
waterproof steering servo, 4-channel micro receiver
ESC: XL-5 with reverse and training mode
Transmission: Brushless ready Magnum 272 metal gear transmission with
rubber sealed ball bearings, and Revo-spec Torque-Control slipper
clutch
Pinion Gears: Two 48 pitch, 19 tooth is installed, 23 tooth included
for higher top speeds
Battery: Traxxas Power Cell 3000mAh 8.4V 7-cell hump with
high-current connector
Battery Charger:
Body: Painted and trimmed Grave Digger
Shocks: Oil-filled Ultra
Steering; Single point
Suspension: Long travel
Differential: Steel planetary gears, brushless ready
Tires: 2.8" (71mm) wide Monster Jam
Wheels: Beadlock style Monster Jam
INCLUDES: RTR Traxxas Grave Digger Monster Truck, AM radio, 12 turn motor, ESC,
painted body, 19 and 23 tooth pinion gears, decals and
instruction manual
REQUIRES: AA Batteries: Eight for transmitter
SPECS: Length: 16.25" (413mm)
Front and Rear Track: 12.75" (324mm) distance between outer edges of
tires side to side
Weight: 65.3oz (1.85kg)
Maximum Height: 8.75" (222mm)
Wheelbase: 10.63" (270mm)
COMMENTS: The Grave Digger is available in the following 27MHz channels;
A2 TRAD35A2 A5 TRAD35A5
A4 TRAD35A4 A6 TRAD35A6
The bodies are licensed, so color and paint schemes are the same for
all channels.
For replacement or to upgrade to Ball Bearings use:
Quantity Size Location Order Stock Number
4 5x11mm Front Hubs 2 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
6 5x11mm Transmission 3 DTXC1547
