TTR ST-1 RTR PRP/SVLR 4.60CC 2

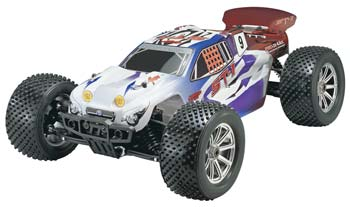

This is the glow powered powered, radio controlled, ready to run, 1/8 scale ST-1 Stadium Truck from Thunder Tiger with Orange and Blue Body. FEATURES: Chassis: Aluminum 0.14" (3.5mm) thick, gun metal gray in color composite side guards Drive: Four wheel shaft with front ball type universal drive shaft Spur Gear 46 tooth, metal Engine: Thunder Tiger Pro-28BX-R .28 cu in (4.6cc) with pull starter, 2 needle slide valve carb, glow plug, foam air filter Tuned Pipe: Anodized natural finish aluminum Brake: Dual disc fiber Clutch: Three shoe, composite construction Clutch Bell: 13 tooth steel Main Gear: 50T steel Fuel Tank: 5oz (150cc) Radio: Ace Jaguar T2P 2-channel 27MHz radio with high-torque steering servo, transmitter has charge jack Differentials: Bevel steel gears Steering: Ball bearing equipped bellcrank type with servo saver Shocks: Oil-filled aluminum body, 3.5mm shafts Shock Towers: Aluminum 0.16" (4mm) thick Body: Trimmed and painted with blue, white and red color scheme Wheels: Nine spoke chrome, 3.34" (85mm) diameter, 2.2" (55mm) wide with 17mm hex Tires: Cube pattern tread, 5.25" (133mm) outer diameter, 2.4" (62mm) wide with foam inserts Ball Bearings: Full set Suspension: Tuned pillow ball front, extra long and rigid suspension arms for superior handling and better cornering, 3.5mm diameter front and rear sway bars Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Warranty: Thunder Tiger guarantees this buggy to be free from defects in both material and workmanship. This warranty does not cover any components damaged by use or modification. A part or parts missing from the kit must be reported within 60 days of purchase. No part or parts will be sent under warranty without proof of purchase INCLUDES: RTR 1/8 scale ST-1 Stadium Truck, .28 cu in engine with pull starter, glow plug, air filter, tuned pipe, 27MHz radio, high- torque steering servo, tires, wheels, foam inserts, decal sheet, wrench, and instruction manual REQUIRES: Fuel: 20% lubricant and 10-30% nitro content, synthetic/castor blend lubricant recommended (do not use more than 10% nitro content for break-in) AA Batteries: 8 for transmitter Receiver Pack: 6V, hump configuration Building and track equipment SPECS: Vehicle; Length: 19" (485mm) Width: 14.8 - 15" (375 - 380mm) Height: 7.17" (182mm) Wheelbase: Adjustable from 13.7 - 14.4" (349 - 365mm) Track Width: Front, adjustable from 13.1 - 13.4" (335 - 340mm) Rear, 13.4" (340mm), track is the measurement from the outer edges of the wheels side-to-side Ground Clearance: 1.9" (48mm) Weight: 8.6lbs (3920g) Body; Length: 18.8" (479mm) Width: 8.2" (209mm) Height: 4.9" (125mm) COMMENTS: For Replacement Ball Bearings use: Qty. Size Location Qty. Bearing Set 4 8x16mm Front Wheel Hubs 2 DTXC1585 4 8x16mm Rear Wheel Hubs 2 DTXC1585 4 8x16mm Front Differential 2 DTXC1585 4 8x16mm Center Differential 2 DTXC1585 4 8x16mm Rear Differential 2 DTXC1585 4 5x10mm Steering Bellcrank 2 DTXC1535 2 5x11mm Clutch Bell 1 DTXC1547
